LIQUID Series

Packaging Machine, Food Processing Machine & Accessories

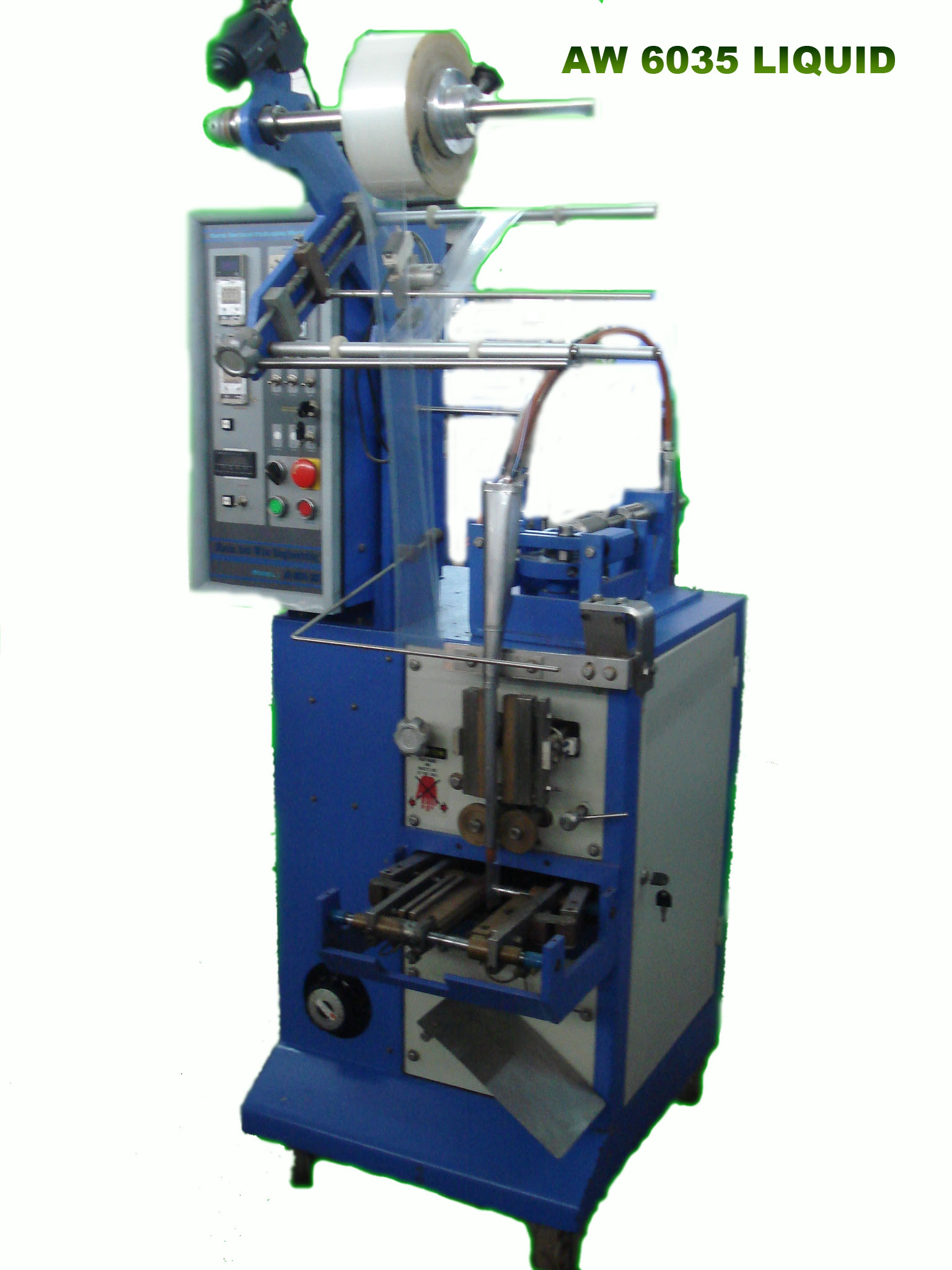

DESCRIPTION	AW 6035 SR Liquid	AW 6035 3SS Liquid	AW 6035 4SS Liquid
Product	Liquid seasoning, oil, Ketchup, sauce	Liquid seasoning, oil, Ketchup, sauce	Liquid seasoning, oil, Ketchup, sauce
Seal Type	Single line Centre Seal	Single line 3 Side Seal	Single line 4 Side Seal
Machine Type	Vertical System Tepuk	Vertical System Tepuk	Vertical System Tepuk
Seal Dimension	W: 50 – 140 mm L: 50 – 160 mm	W: 50 – 100 mm L: 50 – 140 mm	W: 50 – 100 mm L: 50 – 140 mm
Target Weight	Up to 500 gram	Up to 500 gram	up to 500 gram
Machine Dimension	W 670 mm L 900 mm H 1770 mm	W: 670 mm L: 900 mm H: 1770 mm	W: 670 mm L: 900 mm H: 1770 mm
Packaging Materials	PET/AL, NY/PE, NY/AL/PE, CCP/OPP
Operating Speed	30 - 60 pack / min	30 – 60 pack / min	30 - 60 pack / min
Supply Voltage	220/380V, 1ph/3ph, Neutral 50 Hz
Power Requirement	3,5 kVA / 18 amps
(Other Dimension of Bag Size Depend on Customer’s Request) (Production Speed Depends on Product, Film and Feeding method)

DESCRIPTION	AW 300 LA	AW 312 L	W 388 L
Product	Liquid seasoning, oil, Ketchup, sauce	Liquid seasoning, oil, Ketchup, sauce	Liquid seasoning, oil, Ketchup, sauce
Seal Type	2 or 3 lines 3 Side Seal	3 lines 3 side seal	Single line 3 or 4 side seal
Machine Type	Vertical System Roll	Vertical	Vertical
Seal Dimension	W: 30 – 125 mm L: 30 – 125 mm	W: 40 – 100 mm L: 50 – 130 mm	W: 40 – 150 mm L: 20 – 100 mm
Target Weight	50gram	50 gram	5 – 80cc / 50gram
Machine Dimension	W 1000 mm L 1000 mm H 2100 mm	W 1800 mm L 800 mm H 1800 mm	W 1000 mm L 1400 mm H 1800 mm
Packaging Materials	PET/AL, NY/PE, NY/AL/PE, CCP/OPP	PET/AL, NY/PE, NY/AL/PE, CCP/OPP
Operating Speed	40 - 100 pack / min	50 - 100 pack / min	60 - 120 pack / min
Supply Voltage	220/380V, 3ph, Neutral 50 Hz	380V, 3ph Neutral 50 Hz	220/380 V 3ph Neutral 50 Hz
Power Requirement	3,5 kVA / 18 amps	3,5 kVA / 18 amps	3,5 kVA / 18 amps
(Other Dimension of Bag Size Depend on Customer’s Request) (Production Speed Depends on Product, Film and Feeding method)
